AtcoViin®

Natural Ventilation

Roof System

Passive ventilation for all-day airflow. Zero energy. Zero maintenace

Natural roof ventilation system

AtcoViin® is a natural roof ventilation system designed to continuously remove heat, humidity, CO₂, and accumulated dust from industrial buildings by operating on the principle of passive airflow.

Constructed from high-quality Zincalume-coated steel by BlueScope, AtcoViin® offers exceptional strength, corrosion resistance, and 24/7 operation to deliver delivers long-term performance while significantly reducing maintenance requirements and lifecycle costs.

AtcoViin® is specifically developed for hot and humid climates like Thailand to effectively reduces heat accumulation beneath the roof, improves indoor air quality, and enhances continuous air exchange within the building. Its aerodynamic ventilation design also allows soft, indirect daylight to gently enter the space, increasing natural brightness without adding heat load.

This is the optimised solution across building performance, cost efficiency, and environmental responsibility. By improving airflow and reducing reliance on mechanical cooling, it supports long-term energy savings while creating a more comfortable and productive indoor environment.

Passive Airflow System
Operates on natural air circulation principles without electricity or mechanical components.
Flexible Installation Design
Compatible with both ridge ventilation and down-slope installation.
Heat & Moisture Reduction
Continuously expels trapped heat and humidity beneath the roof, maintaining balanced indoor conditions and improving overall air quality.
Compact Jack Roof Structure
Designed in a standardised, lightweight format for easy installation. Its close-fitting profile aligns with roof sheets to minimise long-term leakage risks.
High-Quality Zincalume Steel by BlueScope
Manufactured using AZ150-grade coated steel, offering excellent strength, durability, and superior corrosion resistance.
Indirect Daylight Enhancement
The ventilation design allows soft natural light to enter the building, improving interior brightness.
Integrated Insect & Debris Protection
Built-in mesh prevents insects and unwanted particles from entering, while maintaining uninterrupted airflow performance.
Maintenance-Free Operation
With no electrical systems or moving parts, AtcoViin® ensures reliable long-term performance with minimal maintenance requirements.

How AtcoViin® Works

AtcoViin® operates on the principle of passive airflow, enabling efficient ventilation without relying on external energy.

1
Warm Air Rises
Heat accumulated inside the building becomes lighter than cooler air, naturally rising toward the upper roof area.
2
Air is Drawn Out
As external wind flows across AtcoViin®, it creates negative pressure based on the Bernoulli principle, effectively pulling hot air out through the ventilation opening.
3
Cool Air Replaces
Fresh, cooler air is drawn into the building to replace the exhausted hot air, creating a continuous and balanced airflow cycle.
4
Indirect Daylight Enhancement
Sunlight reflects the Zincalume-coated surface of AtcoViin®, softly diffusing into the interior space.

​​Ventilation is not option, it's strategy

Enhanced Comfort. Optimised Energy Performance.

Improved Comfort Without Additional Cooling Load
By reducing roof heat accumulation, indoor conditions become more stable, allowing HVAC systems to operate more efficiently without additional energy demand.
Better Airflow & Healthier Indoor Environment
Promotes continuous air circulation by drawing fresh outdoor air into the building. Helps reduce humidity buildup, dust accumulation, and the risk of condensation.
Lower Energy & Operational Costs
Operates entirely on natural ventilation without electricity, enabling 24/7 performance with minimal maintenance. This results in operational cost savings.

Proven in Real Buildings

Project Highlight

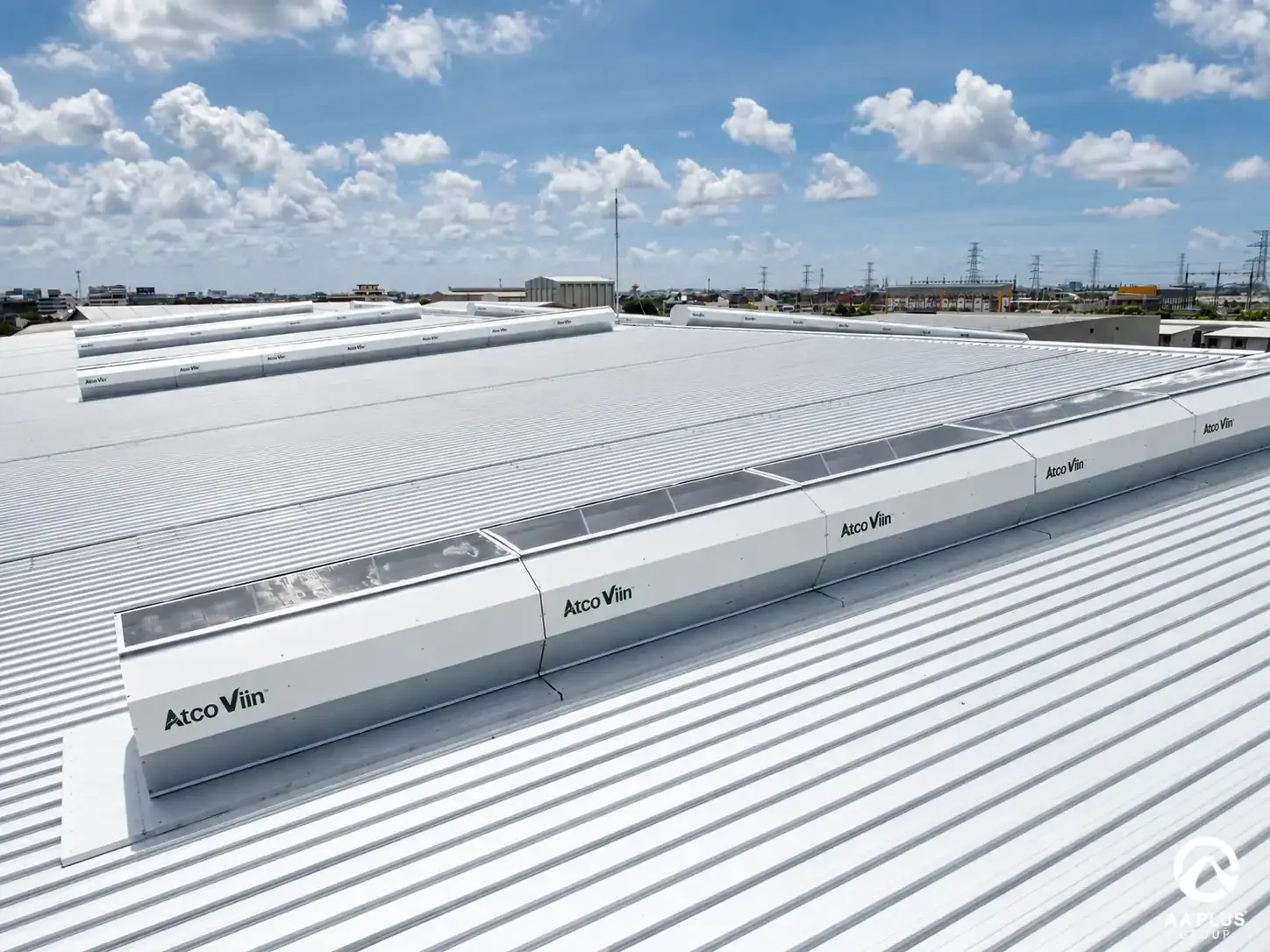

atcoviin_highlight1
Industrial
Ventilation

Warehouse (75 Units : 187.5 m)

Samut Prakan

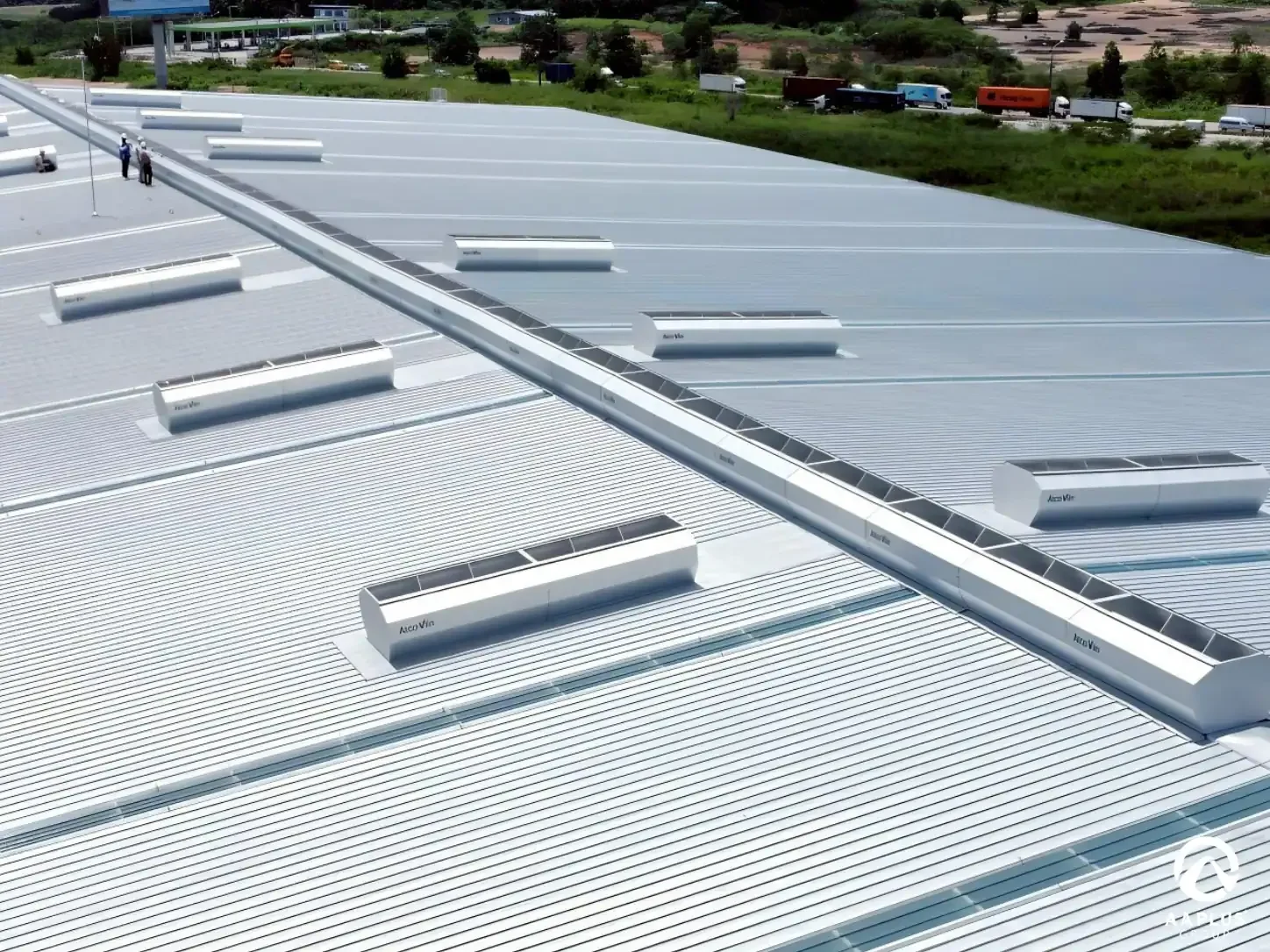

atcoviin_highlight2
Industrial
Ventilation

Warehouse (66 Units : 165 m)

Chonburi

atcoviin_highlight3
Industrial
Ventilation

Warehouse (48 Units : 128 m)

Samut Prakan

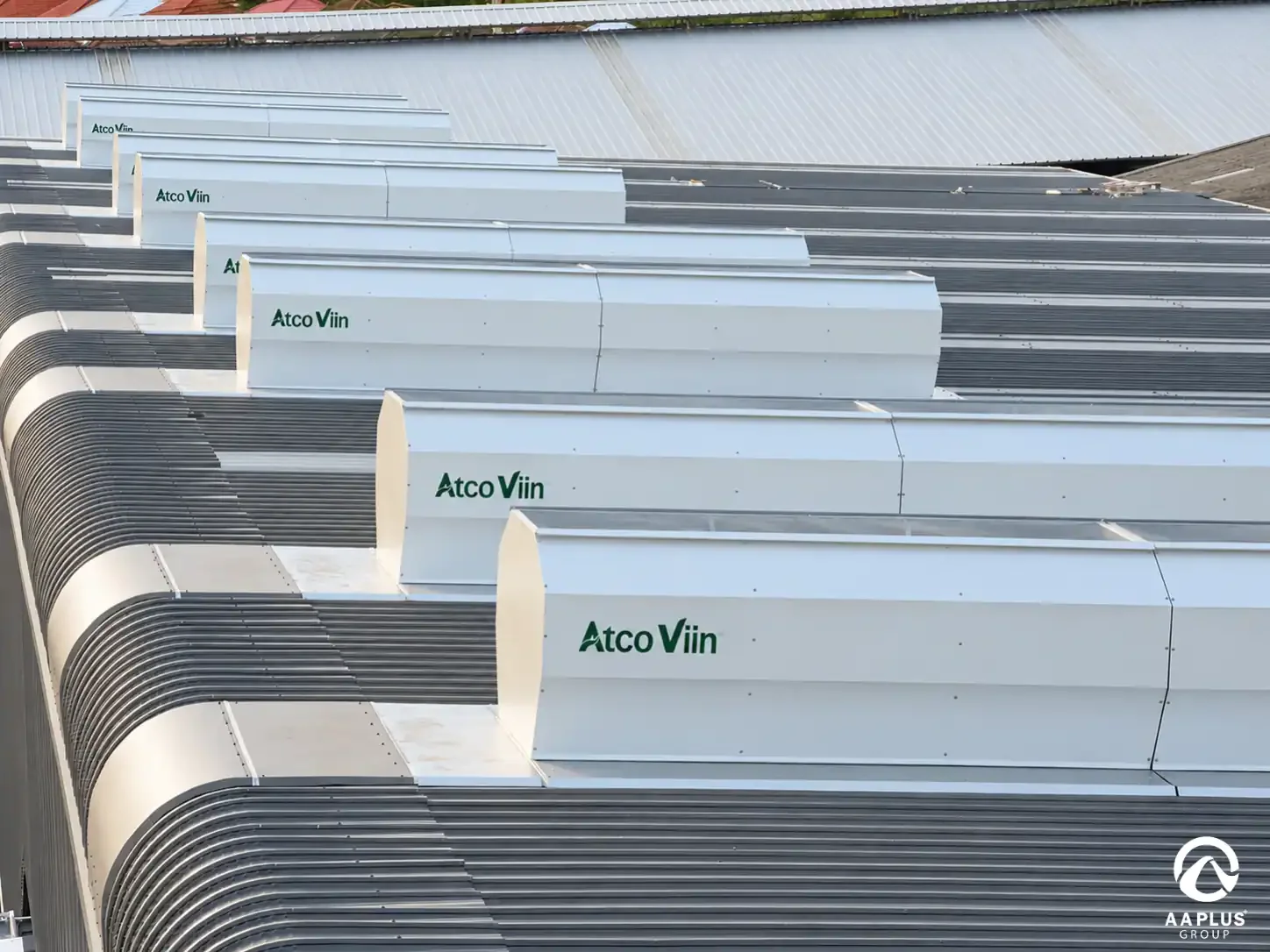

atcoviin_highlight4
Industrial
Ventilation

Warehouse (20 Units : 50 m)

Nonthaburi
